Component:ReferenceMultiplexer

Component image

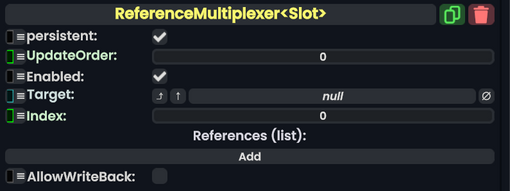

Reference Multiplexer`1 component as seen in the Scene Inspector

ReferenceMultiplexers allow to curate a list of references and drive a target with one of them.

Unlike ValueMultiplexers they don't implement IValue and therefore can't be accessed directly within ProtoFlux. However, with the addition of Collections, this list can be accessed.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Target	direct RefDrive`1<T>	A SyncRef which is driven with the currently selected reference
Index	Int	0-based index that determines which reference of References has been selected; values outside the range [0;length-1] are wrapped around internally.
References	list of T	A list of references which can also individually be driven or written to
AllowWriteBack	Bool	Setting this to true redirects writes from Target to the currently indexed list entry.

Usage

The component behaves similar to a ReferenceCopy with the list entry indicated by Index as its Source. Changes to Index or the list entries will affect Target whenever the drive is evaluated.
