Component:ScaleAligner

This page contains changes which are not marked for translation.

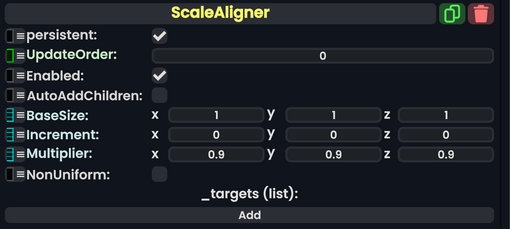

Component image

The ScaleAligner component scales a list of slots based on bounding box, each one being bigger/smaller than the last.

Fields

Fields
Name	Type	Description
`persistent`	Bool	Determines whether or not this item will be saved to the server.
`UpdateOrder`	Int	Controls the order in which this component is updated.
`Enabled`	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
`AutoAddChildren`	Bool	Controls whether slots below this component's slot in the hierarchy are automatically added to `_targets`
`AutoAddIgnoreTags`	direct SyncFieldList`1<String>	This article or section is a stub. You can help the Resonite wiki by expanding it.
`BaseSize`	Float3	The size the first item should be in local space based on Bounding box.
`Increment`	Float3	How much to make the next item in the list bigger/smaller than the last by adding to its Bounding box size.
`Multiplier`	Float3	How much to make the next item in the list bigger/smaller than the last by multiplying its Bounding box size after adding `Increment`
`NonUniform`	Bool	Whether scaling can be non uniform for Bounding box Scale calculations.
`_targets`	list of ScaleAligner.Target	A list of slots and their scales to influence.

Fields
Name	Type	Description
`TargetSlot`	Slot	The slot this Target entry is targeting.
`ScaleDrive`	field drive of Float3	The scale field of `TargetSlot`.
