Component:ScaleGroup

CollapseComponent image

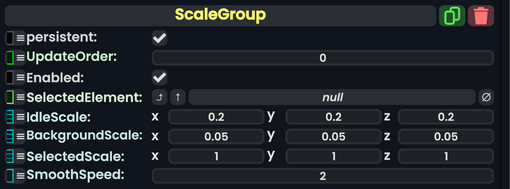

Scale Group component as seen in the Scene Inspector

The ScaleGroup component is used to make a touchable selection system that can be used to select items like the Steam^tm store and big picture menus.

Fields

Fields Collapse

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
SelectedElement	ScaleElement	The currently selected element for this group.
IdleScale	Float3	The scale of elements when they aren't selected.
BackgroundScale	Float3	The scale of elements when they go into the background.
SelectedScale	Float3	The scale of any element when it is selected.
SmoothSpeed	Float	The speed at which elements change scale when they change state.

Usage

Used with a Scale Element list to make a list of selectable elements. Using ProtoFlux to get the slot of the SelectedElement can make this useful for a physical based selection system usable in both VR and Desktop.

Examples

Item made by brecert that shows the component in action on 5 clickable boxes, that grow to the ScaleGroup's SelectedScale when clicked. resdb:///3bfbdceb6a3ed18ede90032c291ddd9051682f6e454ba1d3b2ba14d34e84c884.brson

See Also

• Component:ScaleElement
