Component:SegmentMesh

Component image

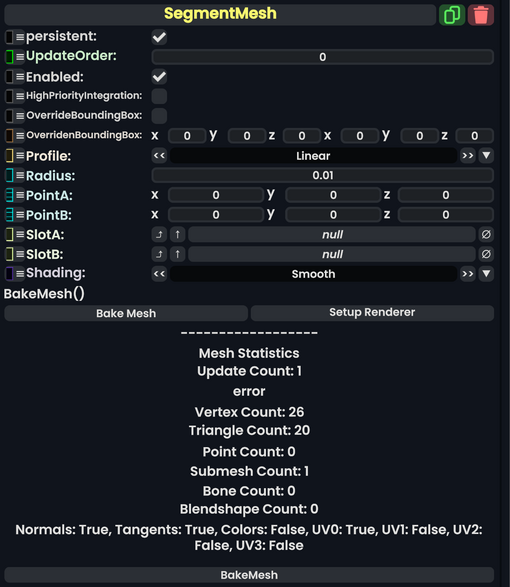

Segment Mesh component as seen in the Scene Inspector

The SegmentMesh component is an evolved form of Component:SlotSegmentMesh the behavior is identical, except when not provided slots it will use local coordinate points instead.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
OverrideBoundingBox	Bool	Force the bounding box calculated from this component to use OverridenBoundingBox instead of calculating when requested.
OverridenBoundingBox	BoundingBox	the bounding box this component should say it has when OverrideBoundingBox is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
Profile	ColorProfile	The profile that the vertex colors for this mesh should be displayed in.
Radius	Float	The radius of the line from PointA/SlotA to PointB/SlotB
PointA	Float3	The starting point of the generated line in local space.
PointB	Float3	The ending point of the generated line in local space.
SlotA	direct TransformRelayRef	The starting point of the generated line. This will be used instead of PointA if provided.
SlotB	direct TransformRelayRef	The ending point of the generated line. This will be used instead of PointB if provided.
Shading	Shading	Whether to use different shading like smooth or flat.

Sync Delegates

Triggers

Method Name	Method type and Arguments.	Description
BakeMesh()	Action	Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.

Usage

Attach to a slot and insert into a Component:MeshRenderer to see the geometry. Don't forget to use a Material.

Examples

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

See Also

• Component:SlotSegmentMesh
