Component:SlotSegmentMesh

This page contains changes which are not marked for translation.

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

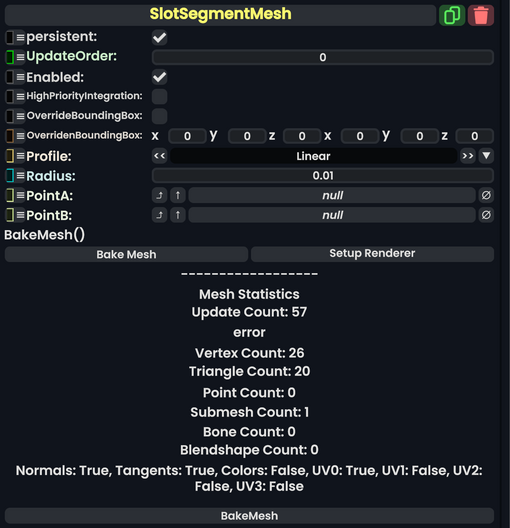

Component image

The SlotSegmentMesh component generates mesh data of a line between PointA and PointB. This is to be used with a Component:MeshRenderer.

Fields

Fields
Name	Type	Description
`persistent`	Bool	Determines whether or not this item will be saved to the server.
`UpdateOrder`	Int	Controls the order in which this component is updated.
`Enabled`	Bool	Controls whether or not this component is enabled.
`HighPriorityIntegration`	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
`OverrideBoundingBox`	Bool	Force the bounding box calculated from this component to use `OverridenBoundingBox` instead of calculating when requested.
`OverridenBoundingBox`	BoundingBox	the bounding box this component should say it has when `OverrideBoundingBox` is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
`Profile`	ColorProfile	The profile that the vertex colors for this mesh should be displayed in.
`Radius`	Float	The radius of the line from `PointA` to `PointB`
`PointA`	Slot	The starting point of the generated line.
`PointB`	Slot	The ending point of the generated line.

Triggers
Method Name	Method type and Arguments.	Description
`BakeMesh()`	Action	Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.

Attach to a slot and then insert into a Component:MeshRenderer. Don't forget to use a Material.
