Component:SkinnedMeshEmitter

Component image

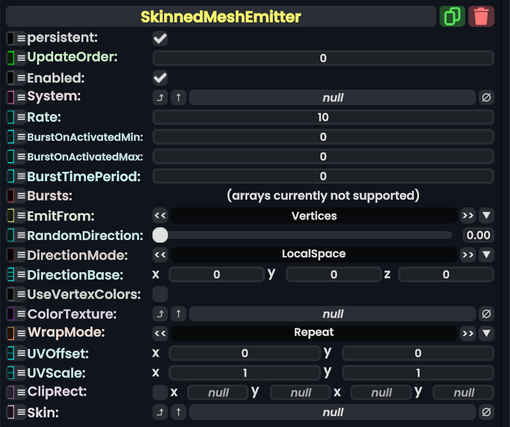

Skinned Mesh Emitter component as seen in the Scene Inspector

This article or section is a stub. You can help the Resonite wiki by expanding it.

A skinned mesh renderer can be used to emit particles from either the vertices, edges, or faces of a SkinnedMeshRenderer. The colors of the particles can be made to be the colors of certain points of a texture, which is sampled via which point on the skinned mesh renderer the particle is emitted from.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
System	ParticleSystem	The particle system to get data from like style and particle count limits.
Rate	Float	how fast to emit particles into the system.
BurstOnActivatedMin	Float	The minimum value of the range of particle count to be emitted when activated as a burst.
BurstOnActivatedMax	Float	The maximum value of the range of particle count to be emitted when activated as a burst.
BurstOnStart	Bool	Whether or not particle bursts should be done on spawn.
EmitFrom	MeshEmissionSource	What parts of the mesh to emit from.
UseVertexColors	Bool	Whether to use the vertex color data from the mesh for the color of the particles.
DirectionMode	MeshEmitterDirection	the coordinate direction to use for up.
Direction	Float3	Which direction in local space to shoot particles emitted by this emitter.
RandomDirectionWeight	Float	How much to randomize the velocity of new particles (this is a magnitude)
ColorTexture	Texture2D	The texture to use as the colors of the emitted particles (samples the color of this at the UV position of the mesh section it was emitted from). Must be "Readable" and "Uncompressed" if using a StaticTexture2D.
WrapMode	WrapMode	How to wrap the UV sample coordinates of the mesh.
UVOffset	Float2	How much to offset the UV sample position of ColorTexture
UVScale	Float2	How much to scale the UV sample position of ColorTexture
ClipRect	Nullable`1<Rect>	The rectangle to discard UV coordinates if they end up outside this range. Kind of like a UV discard.
Skin	SkinnedMeshRenderer	The skinned mesh renderer to emit from.
