Component:SmoothTransform

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

Component image

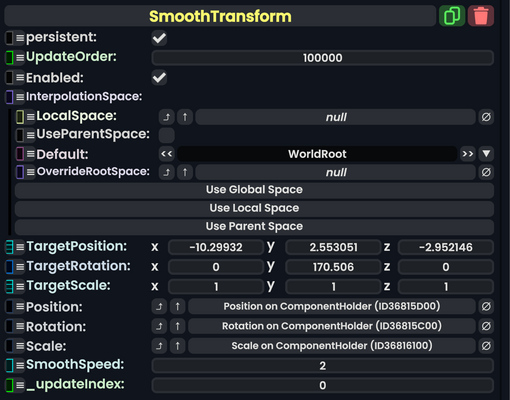

Smooth Transform component as seen in the Scene Inspector

Smooth transform is a component that is used to create a "lag behind" or "trailing" effect on slots or objects that follow another object. The slot this controls will try to return to it's rest position, iteratively getting closer and closer until in eventuality reaching it's target location at rest.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
InterpolationSpace	direct RootSpace	The coordinate space that should be used to check the delta of the transforms in. If set to user space and parented under the user's hand, this slot will only lag behind (or smooth) when the user moves their hand, but not when they walk around. This can also be set to a slot for similar effects without a user.
TargetPosition	Float3	The local transform position that this slot is trying to get to.
TargetRotation	FloatQ	the local transform rotation that this slot is trying to get to.
TargetScale	Float3	The local transform scale that this slot is trying to get to.
Position	field drive of Float3	The position field to drive with the smoothed value (auto filled with the position field of the slot this is on.
Rotation	field drive of FloatQ	The rotation field to drive with the smoothed value (auto filled with the rotation field of the slot this is on.
Scale	field drive of Float3	The scale field to drive with the smoothed value (auto filled with the scale field of the slot this is on.
SmoothSpeed	Float	How fast or slow this slot is at catching up to it's target location. Not a set number of seconds since this component iteratively smooths.
_updateIndex	Int	Whether to do this smooth transform before or after other smooth transforms in the same slot hiearchy.

Examples

Useful in making a little fairy that follows the user around. Or a trail of orbs that float along side the user. Or floating accessories/horns/trinkets that are attached to a user that follow them around. Or an object that loosely follows a racing ship.
