Component:SnapTarget

Component image

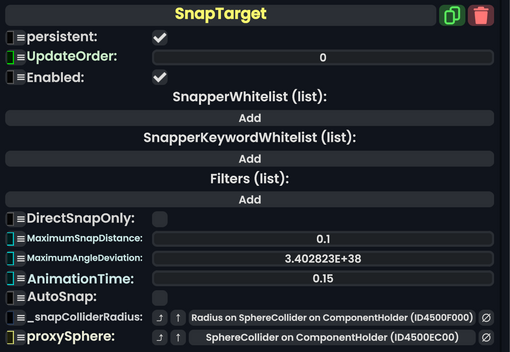

SnapTarget component as seen in the Scene Inspector

The SnapTarget component allows a slot with a Snapper Component to attach to this slot.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
SnapperWhitelist	list of Snapper	List of Snappers that are allowed to attach to this component
SnapperKeywordWhitelist	direct SyncFieldList`1<String>	List of keywords to match against a corresponding Snapper
Filters	list of SnapperFilter	A list of sync delegates that define what will snap to this snap target. These usually come from components that have this kind of sync delegate hidden, and requires a mod to reveal.
DirectSnapOnly	Bool	Unused
MaximumSnapDistance	Float	The maximum distance the Snapper can snap with the Target. This value drives the SphereCollider radius
MaximumAngleDeviation	Float	The maximum angle the snapper can be compared to the angle of this snap target in degrees. Takes the shortest angle path as defined as the shortest path on a sphere.
AnimationTime	Float	The time it takes for the Snapper to lerp to the Target
AutoSnap	Bool	Whether a Snapper will snap instantly whenever it's origin is within the sphere, forcing the user holding it to let go. Rather than check the snap upon letting go and snapping in.
_snapColliderRadius	field drive of Float	The radius drive reference of the SphereCollider
proxySphere	SphereCollider	This must refer to a SphereCollider on the same slot as the SnapTarget. Usually refers to the one generated automatically when the SnapTarget was added.

Behavior

Allows the slot containing this component to receive slots that contain a Snapper component, the Snapper slot will enter the hierarchy of the SnapTarget slot and get positioned to the center.

Control over linking

There are a number of ways to control what is allowed to link with the SnapTarget.

• SnapperWhitelist
  • A list of reference specific snappers that is allowed to link.
• SnapperKeywordWhitelist
  • A list of Strings that need to match to allow the link.
• Filters
  • Allows filtering by function, for example, see: Component:MaterialTool#Sync Delegates

Detecting Snappers

Unlike grabbers, Snappers do not have a way to detect events directly. (GH#2059)

A common approach to drive something else to use ProtoFlux:ChildrenCount on the slot that contains a SnapTarget and monitor if it changes using ProtoFlux:Equals.

For impulses ProtoFlux:SlotChildrenEvents can be used to detect snappers being attached or removed.

Examples

See: Component:Snapper#Examples

See Also

Component:Snapper
