Component image

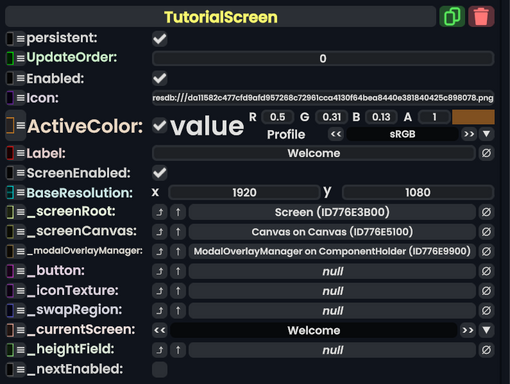

Tutorial Screen component as seen in the Scene Inspector
The TutorialScreen component controls a screen prompting the user to go through the tutorial in their dash.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
Icon
|
Uri | The icon for this dialogue screen. |
ActiveColor
|
Nullable`1<ColorX> | The color when this screen is selected and active. |
Label
|
String | The label of this dash screen. |
ScreenEnabled
|
Bool | Whether this dash screen is enabled or not. |
BaseResolution
|
Float2 | The resolution this screen renders at. |
_screenRoot
|
Slot | The root slot of this screen's visual elements. |
_screenCanvas
|
Canvas | The canvas Component used to render this dash screen. |
_modalOverlayManager
|
ModalOverlayManager | This is the Overlay manager that handles editing mode on this screen. |
_button
|
RadiantDashButton | This is the button to switch to viewing this screen. |
_iconTexture
|
Texture2D | This is the texture Component showing the icon for the tab of this screen. |
_swapRegion
|
SlideSwapRegion | This is the swap region used to show the screen and slide it away/in when it is switched from/to. |
_currentScreen
|
TutorialScreen.Screen | The current screen this tutorial screen dialog is showing. |
_heightField
|
QuantityTextEditorParser`2<Distance, Float> | The field used to enter in and store the user's height setting. |
_nextEnabled
|
Bool | Whether the next button is enabled or not so the user can continue. |
Sync Delegates
| Method Name | Method type and Arguments. | Is the method hidden? | Description |
|---|---|---|---|
OnNext:ButtonEventHandler
|
ButtonEventHandler | ✓ | Handles when the next screen button is enabled. |
OnCreateAccount:ButtonEventHandler
|
ButtonEventHandler | ✓ | Handles when the user asks to create an account. |
OnLoginAccount:ButtonEventHandler
|
ButtonEventHandler | ✓ | Handles when the user logs into an account. |
OnSkipAccount:ButtonEventHandler
|
ButtonEventHandler | ✓ | Handles when the user skips setting up an account. |
OnStartTutorial:ButtonEventHandler
|
ButtonEventHandler | ✓ | Handles when the user asks to start the tutorial world. |
Screen
| Name | Value | Description |
|---|---|---|
Welcome
|
0 | Screen is currently showing the welcome to resonite screen. |
Language
|
1 | Screen is currently showing the select your language screen. |
Audio
|
2 | Screen is currently showing the select audio devices screen. |
BasicSettings
|
3 | Screen is currently showing the basic settings screen. |
Account
|
4 | Screen is currently showing the create or skip creating account screen. |
StartTutorial
|
5 | Screen is currently showing the start tutorial screen. |
Usage
Examples
Used to show the tutorial screen in the dash when the user starts the game for the first time (or wipes their cache)
