Component:ValueReceiver

From Resonite Wiki
Component image

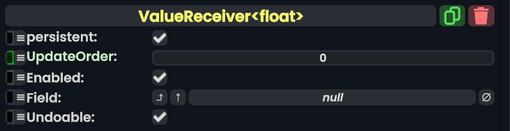

Value Receiver`1 component as seen in the Scene Inspector

The ValueReceiver component is used in UIX elements to allow dropping a value property into a Component:Button or interactable UIX section to change a value field to the dropped value.

Fields

Fields
Name Type Description
persistent Bool Determines whether or not this item will be saved to the server.
UpdateOrder Int Controls the order in which this component is updated.
Enabled Bool Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Field IField`1<T> The field to drop the value into.
Undoable Bool Whether dropping the value is undo able.
TryConvertValues Bool Tries to change a dropped value which is possibly a string into the proper format by parsing.

Usage

Attach to a UIX element to allow an interactable to have droppable values into a target value field. Needs to be provided a target Field in order for it to work.

Examples

Used in inspectors, system installers, and value entries to allow the user to drop values into an installer UI.
