Component:ValueSpatialVariablePartialDerivativeDriver

Component image

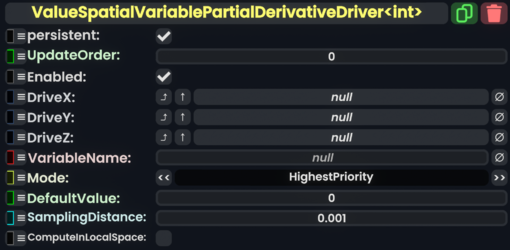

**Value Spatial Variable Partial Derivative Driver`1** component as seen in the Scene Inspector

The Value Spatial Variable Driver`1 component samples from Spatial variables intersecting the slot it is on and gets a value.

Fields

Fields
Name	Type	Description
`persistent`	Bool	Determines whether or not this item will be saved to the server.
`UpdateOrder`	Int	Controls the order in which this component is updated.
`Enabled`	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
`DriveX`	field drive of T	Field X to drive with the sampled variable.
`DriveY`	*[[Type:field drive* of** T\|field drive of T]]	Field Y to drive with the sampled variable.
`DriveZ`	field drive of T	Field Z to drive with the sampled variable.
`VariableName`	String	the name of the variable to be sampling for.
`Mode`	ValueSpatialVariableMode	How to interpret the sampled values.
`DefaultValue`	T	The value to default to when no value can be sampled.
`SamplingDistance`	Float	This article or section is a stub. You can help the Resonite wiki by expanding it.
`computeInLocalSpace`	Bool	If the sampling distance will be scaled to the slots scale or revert to global 1,1,1 scale

Usage

Attach to a slot and provide a fields to drive and a variable name. the slot this component is on acts as the position for sampling variable values and do some math.
