ProtoFlux:SampleTexture2DUV

Sample Texture 2D UV

Texture

*

UV

WrapMode

Assets

Sample texture 2D UV is a node that allows you to sample the pixel color of an 2 dimensional Texture that has readable enabled based on a 0->1 range on UV instead of pixels. Since the StaticTexture2D component needs to have readable enabled, most players opt to keep a component on the object that their code is on, and then change it's URL so they can read the image's pixels.

This node also takes a raw IAsset<Texture2D> instead of an asset provider. To extract the raw texture reference from the provider for use in this node, see the Get Asset Node.

Inputs

Texture (IAsset<Texture2D>)

The raw asset of an IAssetProvider<Texture2D> extracted using a Get Asset Node.

UV (Float2)

The UV position to sample the colorX from.

WrapMode (WrapMode)

Which mode should be used when sampling past the UV 0-1 space.

Outputs

* (colorX)

The ColorX color from the provided Texture (IAsset<Texture2D>) at the provided UV Position (Float2).

Examples

•

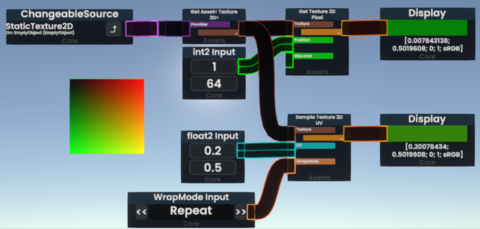

  Example of GetTexture2DPixel And SampleTexture2DUV sampling color from a generated UV texture
