Component:CheckerboardCubemap

This article or section is a stub. You can help the Resonite wiki by expanding it.

Component image

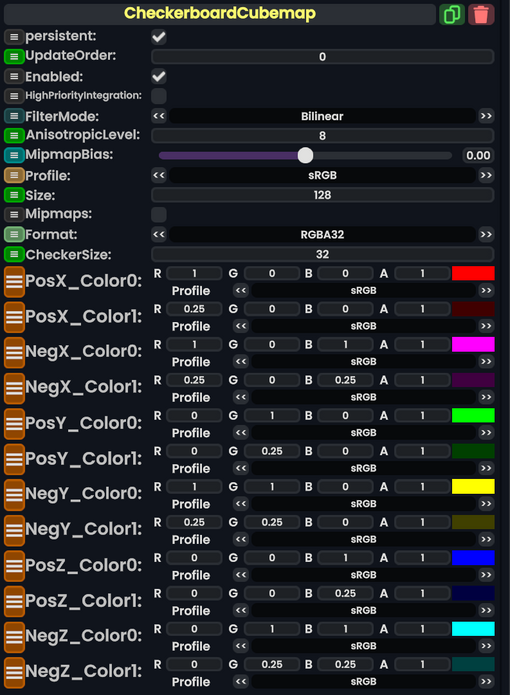

Checkerboard Cubemap component as seen in the Scene Inspector

The CheckerboardCubemap component procedurally generates a cubemap for Projection 360 Materials that is a checkerboard with different pairs of colors for each of the 6 sides.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
FilterMode	TextureFilterMode	How to handle the interpolation between pixels.
AnisotropicLevel	Int	The levels of Anisotropic filtering distances when using Anisotropic for FilterMode
MipmapBias	Float	Whether to see lower resolution versions of the texture closer up or not (MipMaps).
Profile	ColorProfile	The color profile to use for this texture's rendering.
Size	Int	The size of each side of the cubemap in pixels.
Mipmaps	Bool	Whether to enable the rendering of mipmaps, which are lower res textures at further distances from the camera to improve performance.
Format	TextureFormat	TextureFormat describes how Texture's pixel are stored in the VRAM.
CheckerSize	Int	The size in pixels for 1 square of the checkerboard pattern.
PosX_Color0	ColorX	Color 1 for the Positive X direction image's checkerboard pattern.
PosX_Color1	ColorX	Color 2 for the Positive X direction image's checkerboard pattern.
NegX_Color0	ColorX	Color 1 for the Negative X direction image's checkerboard pattern.
NegX_Color1	ColorX	Color 2 for the Negative X direction image's checkerboard pattern.
PosY_Color0	ColorX	Color 1 for the Positive Y direction image's checkerboard pattern.
PosY_Color1	ColorX	Color 2 for the Positive Y direction image's checkerboard pattern.
NegY_Color0	ColorX	Color 1 for the Negative Y direction image's checkerboard pattern.
NegY_Color1	ColorX	Color 2 for the Negative Y direction image's checkerboard pattern.
PosZ_Color0	ColorX	Color 1 for the Positive Z direction image's checkerboard pattern.
PosZ_Color1	ColorX	Color 2 for the Positive Z direction image's checkerboard pattern.
NegZ_Color0	ColorX	Color 1 for the Negative Z direction image's checkerboard pattern.
NegZ_Color1	ColorX	Color 2 for the Negative Z direction image's checkerboard pattern.

Usage

Put into the CubeMap field of a Projection 360 Materials to view what the skybox would look like.

Examples

This article or section is a stub. You can help the Resonite wiki by expanding it.

Usually used for debugging, or for a fever dream chess world.
