Component:DocumentPageTexture

Component image

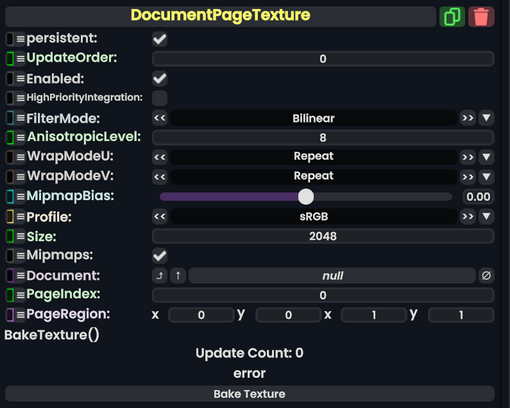

Document Page Texture component as seen in the Scene Inspector

The DocumentPageTexture component generates texture data using a document file like a PDF which can be displayed using a material in a Component:MeshRenderer or UIX.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
FilterMode	TextureFilterMode	How to handle the interpolation between pixels.
AnisotropicLevel	Int	The levels of Anisotropic filtering distances when using Anisotropic for FilterMode
WrapModeU	TextureWrapMode	How to repeat or mirror the texture along the X axis. this goes into affect when X values are outside of the range [0.0 to 1.0].
WrapModeV	TextureWrapMode	How to repeat or mirror the texture along the Y axis. this goes into affect when Y values are outside of the range [0.0 to 1.0].
MipmapBias	Float	Whether to see lower resolution versions of the texture closer up or not (MipMaps).
Profile	ColorProfile	The color profile to use for this texture's rendering.
Size	Int	The size of the procedural texture in pixels.
Mipmaps	Bool
Document	Document	The document to display using this texture.
PageIndex	Int	The page in Document to display as the texture data.
PageRegion	Rect	The area of the in Document to display on page PageIndex

Sync Delegates

Triggers

Method Name	Method type and Arguments.	Description
BakeTexture()	Action	BakeTexture first generates a Component:StaticTexture2D that is the same as this procedural texture. The resulting static texture replaces every reference to the original procedural texture. Lastly the original procedural texture is deleted.

Usage

This component is auto generated as part of a document viewer when importing PDF files. Simply import a PDF file into the game to generate a viewer that uses this component as part of how it works.

Examples

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

See Also

• Type:Document
