Component image

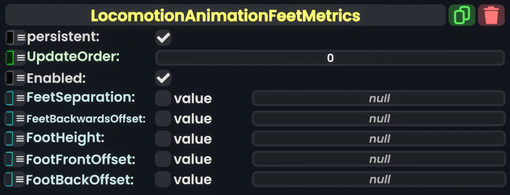

Locomotion Animation Feet Metrics component as seen in the Scene Inspector
The LocomotionAnimationFeetMetrics component is used to adjust the settings for an avatar's feet.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
Space
|
LocomotionMetricsSpace | |
FeetSeparation
|
Nullable`1<Float> | How far apart the feet should be placed from each other. |
FeetBackwardsOffset
|
Nullable`1<Float> | How much the foot should be shifted forwards or backwards. |
FootHeight
|
Nullable`1<Float> | The distance from the floor to the foot bone for the whole foot. |
FootFrontOffset
|
Nullable`1<Float> | An optional value to influence the foot front distance from floor value. |
FootBackOffset
|
Nullable`1<Float> | An optional value to influence the foot back distance from floor value. |
Usage
Examples
Appears on the root of avatars created by the Avatar Creator.
