Look at is a component that is used to make one slot point to look at another slot via a SwingTwist interpolation. Swing Twist is a concept that is too complicated to explain on this wiki, but essentially constrains the rotation on two axies when rotating to a point, locking it within a range. kind of like a turret.

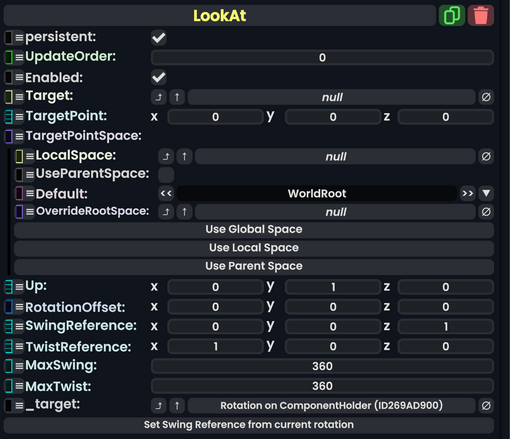

Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. |
Target
|
Slot | The slot to try to look at. |
TargetPoint
|
Float3 | The 3D point to look at when Target is not provided.
|
TargetPointSpace
|
direct RootSpace | The Coordinate space of TargetPoint
|
Up
|
Float3 | The up axis of this slot, usually best to keep at (0,1,0) |
RotationOffset
|
FloatQ | How much to rotate the slot by after applying the look at (quaternion multiplying) |
SwingReference
|
Float3 | The axis to apply "Swing" rotation to. |
TwistReference
|
Float3 | The axis to apply "Twist" rotation to. |
MaxSwing
|
Float | The maximum (pos/neg) amount that the slot can rotate on SwingReference
|
MaxTwist
|
Float | The maximum (pos/neg) amount that the slot can rotate on TwistReference
|
_target
|
field drive of FloatQ | The field to apply the rotation result to. |
Usage
Attach the component to a slot and provide a Target or TargetPoint to make it look at or point at a position. It is recommended to put a slot under this component's slot to apply offsets to the rotation.
Examples
This can be used to make a piston base and rod look at each other to stay connected when the piston moves. this can also be used to make a tracking system.
