Component image

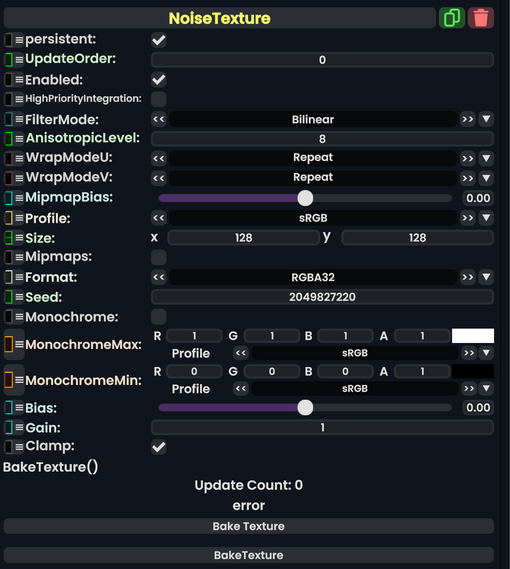

Noise Texture component as seen in the Scene Inspector
Noise texture is a component that procedurally generates a 2D texture with a random noise pattern like TV static.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. |
HighPriorityIntegration
|
Bool | If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes. |
FilterMode
|
TextureFilterMode | How to handle the interpolation between pixels. |
AnisotropicLevel
|
Int | The levels of Anisotropic filtering distances when using Anisotropic for FilterMode
|
WrapModeU
|
TextureWrapMode | How to repeat or mirror the texture along the X axis. this goes into affect when X values are outside of the range [0.0 to 1.0]. |
WrapModeV
|
TextureWrapMode | How to repeat or mirror the texture along the Y axis. this goes into affect when Y values are outside of the range [0.0 to 1.0]. |
MipmapBias
|
Float | Whether to see lower resolution versions of the texture closer up or not (MipMaps). |
Profile
|
ColorProfile | The color profile to use for this texture's rendering. |
Size
|
Int2 | The size of the procedural texture in pixels. |
Mipmaps
|
Bool | Whether to enable the rendering of mipmaps, which are lower res textures at further distances from the camera to improve performance. |
Format
|
TextureFormat | TextureFormat describes how Texture's pixel are stored in the VRAM. |
Seed
|
Int | The number to use to seed the generation of the noise for the texture. |
Monochrome
|
Bool | Whether to make the noise generation use a mix of 2 colors rather than random colors. |
MonochromeMax
|
ColorX | Color 1 to use for the noise texture when Monochrome is enabled.
|
MonochromeMin
|
ColorX | Color 2 to use for the noise texture when Monochrome is enabled.
|
Bias
|
Float | The bias to use more of MonochromeMax or MonochromeMin
|
Gain
|
Float | How much to brighten the entire texture. |
Clamp
|
Bool | Whether to keep color ranges for the output from going beyond 1 and causing bloom. |
Sync Delegates
| Method Name | Method type and Arguments. | Description |
|---|---|---|
BakeTexture()
|
Action | BakeTexture first generates a Component:StaticTexture2D that is the same as this procedural texture. The resulting static texture replaces every reference to the original procedural texture. Lastly the original procedural texture is deleted. |
Usage
Examples
This article or section is a Stub. You can help the Resonite Wiki by expanding it.
Can be used as a way of adding texture to surfaces without using an actual stored texture. Can also be used for random TV static on a TV screen.
