Component:OverlayUnlitMaterial

Component image

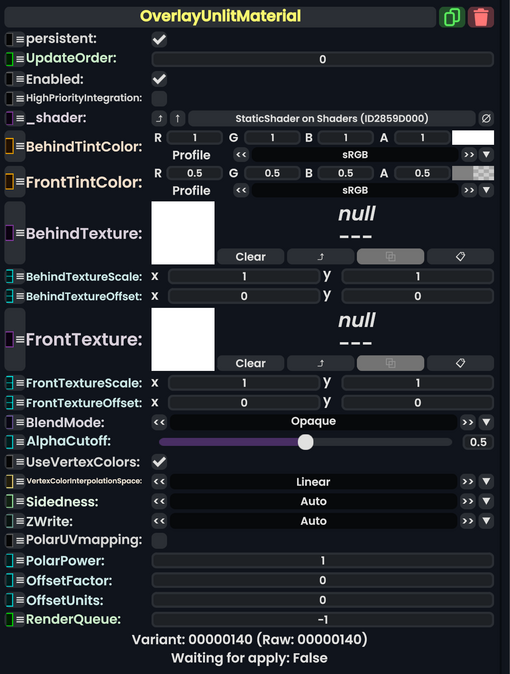

Overlay Unlit Material component as seen in the Scene Inspector

The OverlayUnlitMaterial component is a material that is similar to a Component:UnlitMaterial except it renders differently when in front or behind an object.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
_shader	Shader	Internal.
BehindTintColor	ColorX	The color tint when the material is behind an object.
FrontTintColor	ColorX	The color tint when the material is in front of an object.
BehindTexture	ITexture2D	The texture to use when the material is behind an object.
BehindTextureScale	Float2	The UV scale of BehindTexture.
BehindTextureOffset	Float2	The UV offset of BehindTexture.
FrontTexture	ITexture2D	The texture to use when the material is in front of an object.
FrontTextureScale	Float2	The UV scale of FrontTexture.
FrontTextureOffset	Float2	The UV offset of FrontTexture.
BlendMode	BlendMode	How to blend this material's colors vs what it rendered on top of.
AlphaCutoff	Float	If BlendMode is set to cutout, discard rendering of pixels for the surface that fall below this alpha threshold.
UseVertexColors	Bool	Whether the material should use vertex colors from the mesh.
VertexColorInterpolationSpace	ColorProfile	How to interpolate vertex colors on the mesh.
Sidedness	Sidedness	Render on both sides of the mesh, front, or back.
ZWrite	ZWrite	whether this material should respect the distance it is from the camera.
PolarUVmapping	Bool	Whether to use polar UV unwrapping.
PolarPower	Float	The power of the polar UV unwrapping.
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), adjusted for the polygon's slope relative to the camera's near and far planes. This can be used to sort overlapping geometry that would otherwise Z-fight.
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), in units equal to the smallest possible difference for the rendering device being used.
RenderQueue	Int	changes at which point a material renders on the render stack

Usage

Attach to a slot and put into the materials of a renderer like a Component:SkinnedMeshRenderer or a Component:MeshRenderer with a mesh to view what the material looks like.

Examples

This article or section is a stub. You can help the Resonite wiki by expanding it.
