Component:PixelateMaterial

Component image

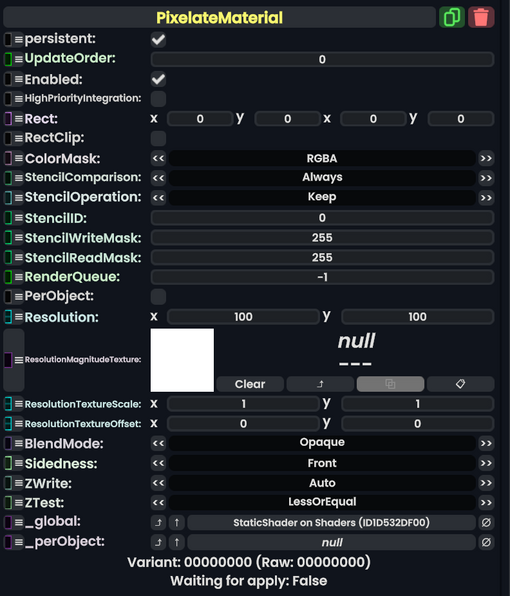

Pixelate Material component as seen in the Scene Inspector

The Pixelate Material component point filters the colors behind it using a spaced out grid of points. It then uses the colors to make a new pixel grid which makes up the pixelated effect it generates.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
Rect	Rect	See RectClip on Materials.
RectClip	Bool	Toggles if the material should use Rect
ColorMask	ColorMask	What colors behind the material should make it through the filter.
StencilComparison	StencilComparison	See Type:StencilComparison for an in depth explanation on what this does.
StencilOperation	StencilOperation	See Type:StencilOperation for an in depth explanation on what this does.
StencilID	Byte	The Stencil ID of this material. This is sometimes written to the frame buffer's Stencil mask, or used to determine whether this material should render for a particular pixel.
StencilWriteMask	Byte	does a Bitwise AND with this number for every pixel in the frame buffer this is rendering on top of when this object is drawn, after reading from the buffer.
StencilReadMask	Byte	is bitwise ANDed with the Stencil in the frame buffer before the test compares them.
RenderQueue	Int	changes at which point a material renders on the render stack
PerObject	Bool	Whether to do the effect per object rather than to the entire image grab pass done by the shader by default.
Resolution	Float2	The resolution of the pixel effect.
ResolutionMagnitudeTexture	ITexture2D	The texture to determine the resolution of certain areas of the surface.
ResolutionTextureScale	Float2	How big to scale the ResolutionMagnitudeTexture along the surface.
ResolutionTextureOffset	Float2	How much to offset the ResolutionMagnitudeTexture along the surface.
BlendMode	BlendMode	How to blend this material's colors vs what it rendered on top of.
Sidedness	Sidedness	Render on both sides of the mesh, front, or back.
ZWrite	ZWrite	whether this material should respect the distance it is from the camera.
ZTest	ZTest	Determines whether this object should render when it is in front of or behind other objects that respect depth from the camera
_global	Shader	Template:Material global
_perObject	Shader	Template:Material perObject

Usage

Attach to a slot and then insert into a SkinnedMeshRenderer or MeshRenderer with a mesh to view it.

Examples

This article or section is a stub. You can help the Resonite wiki by expanding it.
