Component:RemoteConnectionPointDriver

Component image

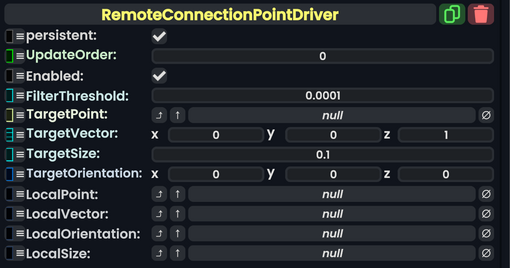

Remote Connection Point Driver component as seen in the Scene Inspector

RemoteConnectionPointDriver allows driving local position, vector, orientation and size from a target Slot. It can be used with TubeWireMesh and StripeWireMesh to drive the other point from another slot.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
FilterThreshold	Float	The threshold before recalculating the target values.
TargetPoint	direct TransformRelayRef	The slot to target.
TargetVector	Float3	The target vector as a local transform under TargetPoint
TargetSize	Float	The target scale as a local transform offset under TargetPoint
TargetOrientation	FloatQ	The target rotation as a local transform offset under TargetPoint
LocalPoint	field drive of Float3	The field to drive with the position of TargetPoint with an offset of TargetVector converted to this slot's local space.
LocalVector	field drive of Float3	The field to drive with a vector of TargetVector in the transform space of TargetPoint converted to this slot's local space.
LocalOrientation	field drive of FloatQ	The field to drive with the rotation of TargetPoint with an offset of TargetVector converted to this slot's local space.
LocalSize	field drive of Float	The field to drive with the scale of TargetPoint with an offset of TargetSize converted to this slot's local space.

Usage

• It's not a complete physical rope simulator or anything, but it lets you connect two endpoints using the different wire mesh types.
• Hyper convenience components that make tube meshes squishy like neurons
