Component:TextUnlitMaterial

Component image

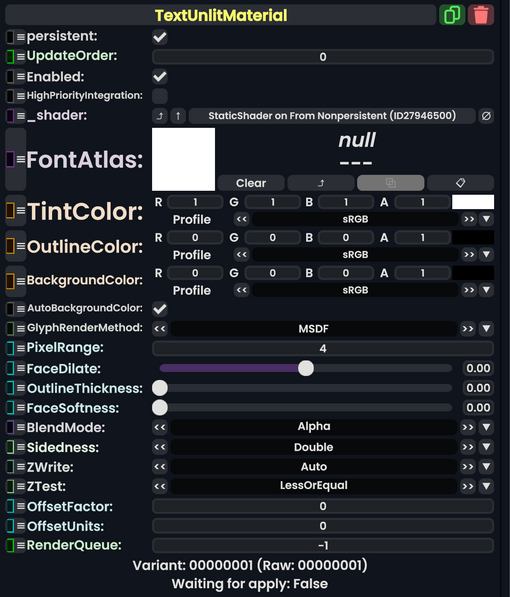

Text Unlit Material component as seen in the Scene Inspector

The TextUnlitMaterial component is a material used to render text glyphs. It does so via meshes that automatically generates UV maps that map to each character on a font map. Such as Component:Text and Component:TextRenderer.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
_shader	Shader	Internal.
FontAtlas	ITexture2D	The font to render.
TintColor	ColorX	What color to tint the projected image.
OutlineColor	ColorX	The color of the outline around the mesh.
BackgroundColor	ColorX	The color of behind each text glyph
AutoBackgroundColor	Bool	Whether to automatically generate the background text color.
GlyphRenderMethod	GlyphRenderMethod	How to render each glyph or text character.
PixelRange	Float	Sets the distance field range in output pixels.
FaceDilate	Float	How fat to make the letters like bolding them.
OutlineThickness	Float	The thickness of the outline on text for colored outlines.
FaceSoftness	Float	How much blurring to do on the edges of the text.
BlendMode	BlendMode	How to blend this material's colors vs what it rendered on top of.
Sidedness	Sidedness	Render on both sides of the mesh, front, or back.
ZWrite	ZWrite	whether this material should respect the distance it is from the camera.
ZTest	ZTest	Determines whether this object should render when it is in front of or behind other objects that respect depth from the camera
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), adjusted for the polygon's slope relative to the camera's near and far planes. This can be used to sort overlapping geometry that would otherwise Z-fight.
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), in units equal to the smallest possible difference for the rendering device being used.
RenderQueue	Int	changes at which point a material renders on the render stack

Usage

This article or section is a stub. You can help the Resonite wiki by expanding it.

Examples

Used in rendering Component:TextRenderer and Component:Text

See Also

• Component:TextRenderer
• Component:UI_TextUnlitMaterial
