Component:TorsoHapticPointMapper

Component image

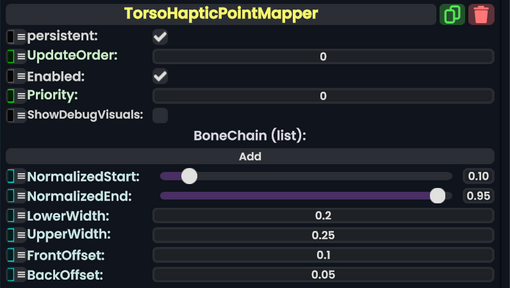

Torso Haptic Point Mapper component as seen in the Scene Inspector

The TorsoHapticPointMapper component is used to tell the game the size of an Avatar's torso and its bones in order for the game to know where to place haptic point samplers so they better match the size and positions of the body.

The area makes up a 3d trapezoid with thickness, with a parallel front and back, and top and bottom, but a non parallel left and right.

This works as part of the game's robust Haptics system.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Priority	Int	The priority of this Mapper over other mappers.
ShowDebugVisuals	Bool	Whether to show the area and haptic point Debug visuals.
BoneChain	list of Slot	A list of bones that make up the center spine of the avatar. (Hips, Spine(s), Chest, upper chest)
NormalizedStart	Float	Where in the chain does the haptics mapping start?
NormalizedEnd	Float	Where in the chain does the haptics mapping end?
LowerWidth	Float	The width of the lower spine.
UpperWidth	Float	The width of the upper spine.
FrontOffset	Float	How far the front side is from the spine bones.
BackOffset	Float	How far the back side is from the spine bones.

Usage

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

Examples

Attached to the chest of an avatar set up with the Avatar Creator in order for the avatar to handle mapping haptics to its surface correctly for things like haptics vests or giggle pucks.
