Component:UV RectMaterial

Component image

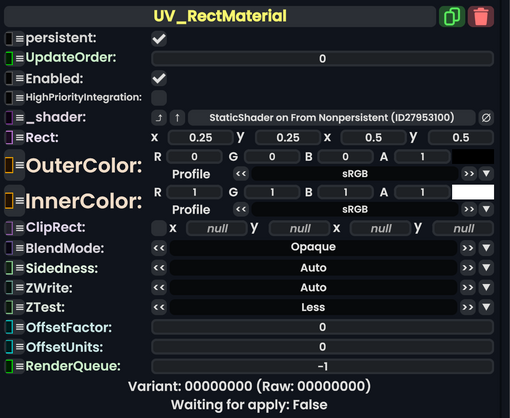

UV Rect Material component as seen in the Scene Inspector

The UV_RectMaterial component is a material that shows where a rect (rectangle) would be on a material surface.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
_shader	Shader	Internal.
Rect	Rect	See RectClip on Materials.
OuterColor	ColorX	The color for the rest of the material.
InnerColor	ColorX	The color inside the rectangle.
ClipRect	Nullable`1<Rect>	See RectClip on Materials.
BlendMode	BlendMode	How to blend this material's colors vs what it rendered on top of.
Sidedness	Sidedness	Render on both sides of the mesh, front, or back.
ZWrite	ZWrite	whether this material should respect the distance it is from the camera.
ZTest	ZTest	Determines whether this object should render when it is in front of or behind other objects that respect depth from the camera
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), adjusted for the polygon's slope relative to the camera's near and far planes. This can be used to sort overlapping geometry that would otherwise Z-fight.
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), in units equal to the smallest possible difference for the rendering device being used.
RenderQueue	Int	changes at which point a material renders on the render stack

Usage

Attach to a slot and put into the materials list of either a Component:MeshRenderer or Component:SkinnedMeshRenderer with a mesh to see what it looks like.

Examples

This article or section is a stub. You can help the Resonite wiki by expanding it.
