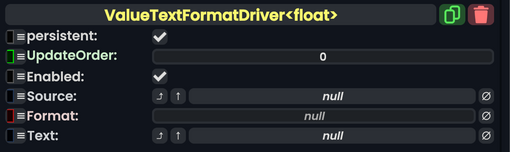

Component image
Value Text Format Driver`1 component as seen in the Scene Inspector

ValueTextFormatDriver applies the value of a single source field to a text format string and drives the target string field. The source field is element 0 in the format string. Elements are defined by putting {} brackets around a number. Although the image shown and the field list below have the source field being a float, this component is generic, so any field type (that can be converted to a string) can be used.

Fields

Fields
Name Type Description
persistent Bool Determines whether or not this item will be saved to the server.
UpdateOrder Int Controls the order in which this component is updated.
Enabled Bool Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Source direct RelayRef`1<IField`1<T>> The source field for the value.
Format String The string format with "{0}" in it somewhere
Text field drive of String The target field.

Usage

Attach to a slot and provide a format string and source value in order to drive a string field (possibly text) with the formatted number.

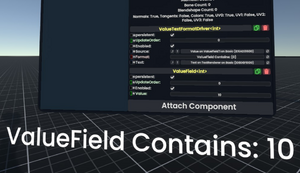

Examples

Can be used to drive the descriptions on UIX, context menus, or visuals.
