Ref To Output
null
∅
Core
The Reference To Output node takes a Global ProtoFlux reference and returns the IVariable that can be used for an Indirect Write.
This node is automatically created when attaching an applicable node output (Data Model Store, Store, Local, or Source) into an input that requires an IVariable. To create this node from the node menu, one must use the assembly type names for IVariable and ExecutionContent. An example valid type for this node is ProtoFlux.Runtimes.Execution.IVariable<ProtoFlux.Runtimes.Execution.ExecutionContext,string>
.
Outputs
* (IVariable)
The IVariable wrapper of Reference
.
Globals
Reference (IVariable)
The IProtoFluxNode<IVariable<C,T>>
to output. Common cases for this are a Data Model Store, Store, Local, or Source.
Examples
-

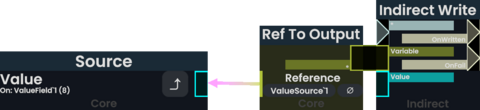

A simple example or writing to a source.
-

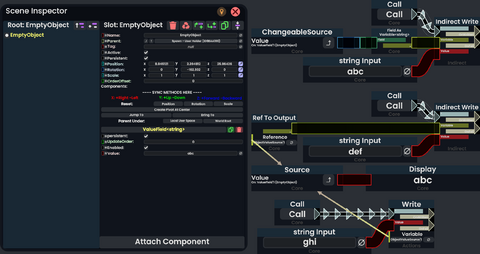

Different ways of writing to the
Value
of a Component:ValueField.
See Also
- ProtoFlux:Field As Variable, an easier way to achieve this behavior if one is working with IFields and not stores.
