Component image

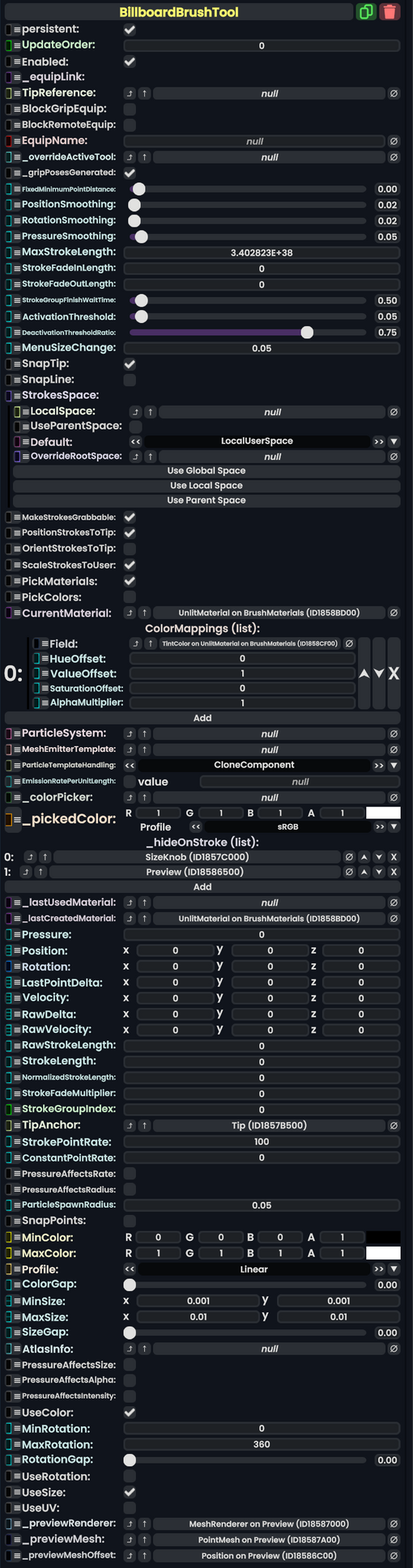

Billboard Brush Tool component as seen in the Scene Inspector
The BillboardBrushTool is a Brush Tool that draws ribbons.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. |
_equipLink
|
direct LinkTarget`1<ITool> | This is Internal, and is used by the engine to retrieve the component this field is a part of. It cannot be assigned to. |
TipReference
|
Slot | The slot to use as the tool's tip, instead of the component's slot. |
BlockGripEquip
|
Bool | Whether to prevent legacy double grip equipping from equipping this tooltip. |
BlockRemoteEquip
|
Bool | Whether to prevent equipping by clicking via laser |
EquipName
|
String | The name of the tool in the context menu when equipping via context menu. |
_overrideActiveTool
|
InteractionHandler | The interaction handler to use instead of this tool as an interaction handler. |
_gripPosesGenerated
|
Bool | Whether the Grip Pose Reference components and slots have been generated for this tool. |
FixedMinimumPointDistance
|
Float | Stroke point distances within a stroke cannot be less than this value. |
PositionSmoothing
|
Float | How much to smooth the brush tip position when drawing. |
RotationSmoothing
|
Float | How much to smooth the rotation of the brush tip when drawing |
PressureSmoothing
|
Float | How much to smooth the brush pressure being applied |
MaxStrokeLength
|
Float | The longest a Brush stroke can be before being ended forcibly. |
StrokeFadeInLength
|
Float | The length along the stroke that the stroke fades in. |
StrokeFadeOutLength
|
Float | The length along the stroke that the stroke fades out. |
StrokeGroupFinishWaitTime
|
Float | Finishes the group when drawing strokes for more than this many seconds regardless of how full the group is. |
ActivationThreshold
|
Float | When pressure/strength is above this value, the tool starts drawing. |
DeactivationThresholdRatio
|
Float | When pressure/strength is below this value, the tool stops drawing. |
MenuSizeChange
|
Float | How much to increment or decrement the brush size when using the context menu controls. |
SnapTip
|
Bool | Whether the brush tip should snap to snappers like planes or snap spheres. |
SnapLine
|
Bool | Whether to snap new lines to snappers like snap planes or snap spheres. |
StrokesSpace
|
direct RootSpace | The space to create new strokes into. |
MakeStrokesGrabbable
|
Bool | Make new strokes grabbable. |
PositionStrokesToTip
|
Bool | Position the slots of new stroke groups to the brush tip. |
OrientStrokesToTip
|
Bool | Make the rotation of new stroke group slots oriented to the brush tip. |
ScaleStrokesToUser
|
Bool | Whether the brush strokes should be scaled up or down to match the user's scale. |
PickMaterials
|
Bool | Whether this brush can pick a material by dipping the brush tip in a material orb. |
PickColors
|
Bool | Whether this tool can pick colors by dipping the brush tip into a material orb. |
CurrentMaterial
|
Material | The current material the brush is using to draw. |
ColorMappings
|
list of ColorMapping | Associates materials with their color fields. |
ParticleSystem
|
LegacyParticleSystem | The Particle system to Template when making Particle strokes. |
MeshEmitterTemplate
|
LegacyMeshEmitter | The template component to use as the mesh emitter of new particle emitting strokes. |
ParticleTemplateHandling
|
TemplateHandling | How to handle the use of the Particle system template per new stroke group. |
EmissionRatePerUnitLength
|
Nullable`1<Float> | The rate of particle emission per unit length section of the stroke mesh. |
_colorPicker
|
direct SlotCleanupRef`1<ColorDialogInterface> | The current color picker dialouge being used to pick a color for this brush. |
_pickedColor
|
ColorX | The color that the tool has picked by being dipped in a material orb or picked via a color picker. |
_hideOnStroke
|
list of Slot | The list of slots to hide while making a Brush stroke. |
_lastUsedMaterial
|
Material | The last used material by this brush. |
_lastCreatedMaterial
|
Material | The last material generated by this brush. |
Pressure
|
raw output of Float | The pressure being applied to the brush. |
Position
|
raw output of Float3 | The position of the brush tip after smoothing. |
Rotation
|
raw output of FloatQ | The rotation of the brush tip after smoothing. |
LastPointDelta
|
raw output of Float3 | The difference between the last drawing position and its current position. |
Velocity
|
raw output of Float3 | The velocity of the tool tips position. |
RawDelta
|
raw output of Float3 | The raw delta of the tool tips position. |
RawVelocity
|
raw output of Float3 | The raw velocity of the tool tip. |
RawStrokeLength
|
raw output of Float | The raw stroke length. |
StrokeLength
|
raw output of Float | The current stroke length in meters in StrokesSpace
|
NormalizedStrokeLength
|
raw output of Float | The length of the current stroke from 0->1 where one is maximum length set for this brush for strokes. |
StrokeFadeMultiplier
|
raw output of Float | The multiplier to the fade in and out effects of the stroke. Making the fade in and out sharper or more gradual. |
StrokeGroupIndex
|
raw output of Int | The running index of strokes being drawn as part of a stroke group. |
TipAnchor
|
Slot | The slot used as the source of strokes being drawn. |
StrokePointRate
|
Float | A multiplier to the affect of speed on the generation of points, so point generation is more concentrated over distance. |
ConstantPointRate
|
Float | A multiplier for the point generation rate while drawing |
PressureAffectsRate
|
Bool | Whether tool pressure affects point generation rate |
PressureAffectsRadius
|
Bool | Whether tool pressure effects the radius around the brush tip that points are generated. |
ParticleSpawnRadius
|
Float | The radius from the brush tip that points are generated including for particles |
SnapPoints
|
Bool | Whether generated points should snap to snappers like snapping planes, circles, lines, etc |
MinColor
|
Color | The minimum color that can be generated for points (Quads, Cubes, Etc) |
MaxColor
|
Color | The maximum color that can be generated for points (Quads, Cubes, Etc) |
Profile
|
ColorProfile | The color profile of Min and Max color. |
ColorGap
|
Float | Whether the color generated should bias towards min or max color. |
MinSize
|
Float2 | The minimum size generated points can be (Quads, Cubes, etc) |
MaxSize
|
Float2 | The maximum size generated points can be (Quads, cubes, etc) |
SizeGap
|
Float | Whether the size should lean towards the minimum or maximum size. |
AtlasInfo
|
AtlasInfo | The atlas info found from a material picked via material orb. |
PressureAffectsSize
|
Bool | Whether tool pressure effects the size of generated points from this tool. (Quads, cubes, etc) |
PressureAffectsAlpha
|
Bool | Whether tool pressure should affect color alpha. |
PressureAffectsIntensity
|
Bool | Whether tool use pressure affects color brightness. |
UseColor
|
Bool | When points are added to a point based brush, this determines if those points should use a color made from MinColor and MaxColor?.
|
MinRotation
|
Float | the minimum rotation the generated geometry can have. |
MaxRotation
|
Float | the maximum rotation the generated geometry can have. |
RotationGap
|
Float | the bias of the rotation of generated geometry |
UseRotation
|
Bool | Whether the generated geometry should use rotation. |
UseSize
|
Bool | Whether the generated geometry should utilize size arguments. |
UseUV
|
Bool | Whether the generated geometry should have UVs. |
_previewRenderer
|
MeshRenderer | The renderer being used to render the mesh preview of this brush. |
_previewMesh
|
direct DriveRef`1<PointMesh> | The mesh being used to preview the stroke of this brush. |
_previewMeshOffset
|
field drive of Float3 | The position offset of the mesh preview for this brush. |
Usage
This article or section is a Stub. You can help the Resonite Wiki by expanding it.
