Component:ConvexHullBrushTool

Component image

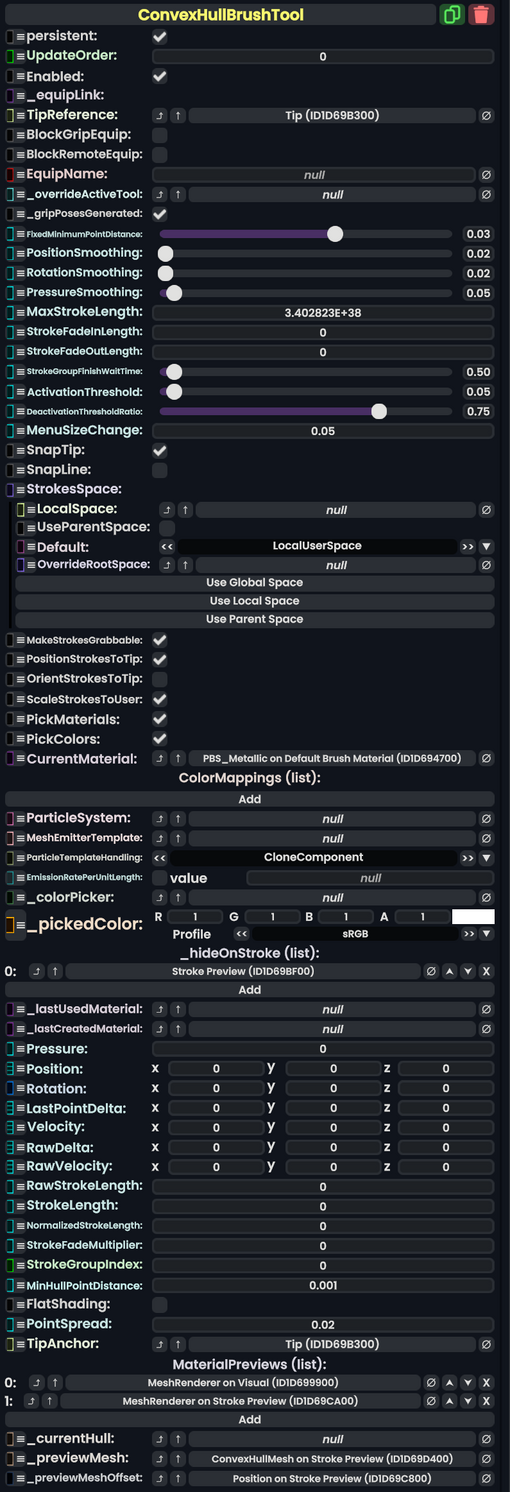

Convex Hull Brush Tool component as seen in the Scene Inspector

The ConvexHullBrushTool component is a tool tip used to draw convex hulls.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
_equipLink	direct LinkTarget`1<ITool>	This is Internal, and is used by the engine to retrieve the component this field is a part of. It cannot be assigned to.
TipReference	Slot	The slot to use as the tool's tip, instead of the component's slot.
BlockGripEquip	Bool	Whether to prevent legacy double grip equipping from equipping this tooltip.
BlockRemoteEquip	Bool	Whether to prevent equipping by clicking via laser
EquipName	String	The name of the tool in the context menu when equipping via context menu.
_overrideActiveTool	InteractionHandler	The interaction handler to use instead of this tool as an interaction handler.
_gripPosesGenerated	Bool	Whether the Grip Pose Reference components and slots have been generated for this tool.
FixedMinimumPointDistance	Float	Stroke point distances within a stroke cannot be less than this value.
PositionSmoothing	Float	How much to smooth the brush tip position when drawing.
RotationSmoothing	Float	How much to smooth the rotation of the brush tip when drawing
PressureSmoothing	Float	How much to smooth the brush pressure being applied
MaxStrokeLength	Float	The longest a Brush stroke can be before being ended forcibly.
StrokeFadeInLength	Float	The length along the stroke that the stroke fades in.
StrokeFadeOutLength	Float	The length along the stroke that the stroke fades out.
StrokeGroupFinishWaitTime	Float	Finishes the group when drawing strokes for more than this many seconds regardless of how full the group is.
ActivationThreshold	Float	When pressure/strength is above this value, the tool starts drawing.
DeactivationThresholdRatio	Float	When pressure/strength is below this value, the tool stops drawing.
MenuSizeChange	Float	How much to increment or decrement the brush size when using the context menu controls.
SnapTip	Bool	Whether the brush tip should snap to snappers like planes or snap spheres.
SnapLine	Bool	Whether to snap new lines to snappers like snap planes or snap spheres.
StrokesSpace	direct RootSpace	The space to create new strokes into.
MakeStrokesGrabbable	Bool	Make new strokes grabbable.
PositionStrokesToTip	Bool	Position the slots of new stroke groups to the brush tip.
OrientStrokesToTip	Bool	Make the rotation of new stroke group slots oriented to the brush tip.
ScaleStrokesToUser	Bool	Whether the brush strokes should be scaled up or down to match the user's scale.
PickMaterials	Bool	Whether this brush can pick a material by dipping the brush tip in a material orb.
PickColors	Bool	Whether this tool can pick colors by dipping the brush tip into a material orb.
CurrentMaterial	Material	The current material the brush is using to draw.
ColorMappings	list of ColorMapping	Associates materials with their color fields.
ParticleSystem	ParticleSystem	The Particle system to Template when making Particle strokes.
MeshEmitterTemplate	MeshEmitter	The template component to use as the mesh emitter of new particle emitting strokes.
ParticleTemplateHandling	TemplateHandling	How to handle the use of the Particle system template per new stroke group.
EmissionRatePerUnitLength	Nullable`1<Float>	The rate of particle emission per unit length section of the stroke mesh.
_colorPicker	direct SlotCleanupRef`1<ColorDialogInterface>	The current color picker dialouge being used to pick a color for this brush.
_pickedColor	ColorX	The color that the tool has picked by being dipped in a material orb or picked via a color picker.
_hideOnStroke	list of Slot	The list of slots to hide while making a Brush stroke.
_lastUsedMaterial	Material	The last used material by this brush.
_lastCreatedMaterial	Material	The last material generated by this brush.
Pressure	raw output of Float	The pressure being applied to the brush.
Position	raw output of Float3	The position of the brush tip after smoothing.
Rotation	raw output of FloatQ	The rotation of the brush tip after smoothing.
LastPointDelta	raw output of Float3	The difference between the last drawing position and its current position.
Velocity	raw output of Float3	The velocity of the tool tips position.
RawDelta	raw output of Float3	The raw delta of the tool tips position.
RawVelocity	raw output of Float3	The raw velocity of the tool tip.
RawStrokeLength	raw output of Float	The raw stroke length.
StrokeLength	raw output of Float	The current stroke length in meters in StrokesSpace
NormalizedStrokeLength	raw output of Float	The length of the current stroke from 0->1 where one is maximum length set for this brush for strokes.
StrokeFadeMultiplier	raw output of Float	The multiplier to the fade in and out effects of the stroke. Making the fade in and out sharper or more gradual.
StrokeGroupIndex	raw output of Int	The running index of strokes being drawn as part of a stroke group.
MinHullPointDistance	Double	The minimum distance between points to be wrapped by a convex hull mesh.
FlatShading	Bool	Whether the Convex Hull Mesh should be flat shaded.
PointSpread	Float	how far apart to spread the convex hull points
TipAnchor	Slot	The slot used as the source of strokes being drawn.
MaterialPreviews	list of MeshRenderer	A list of mesh renderers being used to preview materials for the tool
_currentHull	ConvexHullMesh	The current convex hull this brush is modifying via drawing.
_previewMesh	reference drive of ConvexHullMesh	The mesh being used to preview the stroke of this brush.
_previewMeshOffset	field drive of Float3	The position offset of the mesh preview for this brush.

Sync Delegates

Triggers

Method Name	Method type and Arguments.	Is the method hidden?	Description
ChangeSize:Action`1<Float>	Action`1<Float>	✓	Handles changing the size of the brush of a brush tool.
