Component:UVW ProceduralTexture3D

Component image

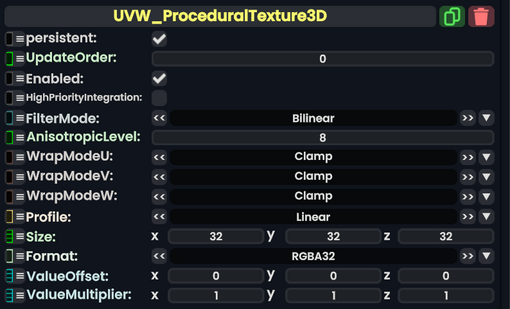

UVW Procedural Texture 3D component as seen in the Scene Inspector

The UVWProceduralTexture3D component is used to create a default RGB cube that any XYZ coordinate corresponds to the same RGB color. This works as long as if ValueOffset is left at 0 and ValueMultiplier is left at 1. This means if it is plugged into a Component:LUT Material, it will not modify the colors seen through the material.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
FilterMode	TextureFilterMode	How to handle the interpolation between pixels.
AnisotropicLevel	Int	The levels of Anisotropic filtering distances when using Anisotropic for FilterMode
WrapModeU	TextureWrapMode	How to repeat or mirror the texture along the X axis. this goes into affect when X values are outside of the range [0.0 to 1.0].
WrapModeV	TextureWrapMode	How to repeat or mirror the texture along the Y axis. this goes into affect when Y values are outside of the range [0.0 to 1.0].
WrapModeW	TextureWrapMode	How to repeat or mirror the texture along the Z axis. this goes into affect when Z values are outside of the range [0.0 to 1.0].
Profile	ColorProfile	The color profile to use for this texture's rendering.
Size	Int3	The size of the procedural texture in pixels.
Format	TextureFormat	TextureFormat describes how Texture's pixel are stored in the VRAM.
ValueOffset	Float3	How much to add to the colors in the cube by, which shifts all colors towards the +X,+Y,+Z direction.
ValueMultiplier	Float3	How much to multiply the colors in the cube by, which scales all colors towards the +X,+Y,+Z direction.

Usage

Attach to a slot and insert into either a Component:VolumeUnlitMaterial or a Component:LUT Material to view what it looks like or how it modifies colors.

Examples

This article or section is a Stub. You can help the Resonite Wiki by expanding it.
