Component:UserDistanceValueDriver

Component image

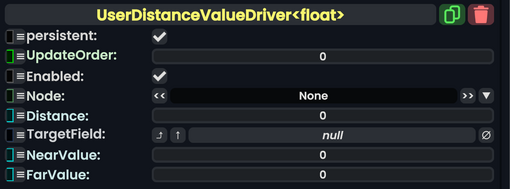

User Distance Value Driver`1 component as seen in the Scene Inspector

The UserDistanceValueDriver switches or flip flops or flips between two different values like a conditional or ternary operator when a user is close to or far away from the slot this component is on. The switch is local.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Node	UserRoot.UserNode	The user node to check distance from.
Distance	Float	The distance to use when checking near vs far.
TargetField	field drive of T	The field to drive with either NearValue or flip to FarValue depending on distance.
NearValue	T	The value to use to drive TargetField with when the local user Node under Distance away from this component's slot in global space.
FarValue	T	The value to use to drive TargetField with when the local user Node over Distance away from this component's slot in global space.

Usage

Attach to a slot that a distance to the local user for a particular slot in global space needs to be checked for. Then provide values for all the component's fields in order for it to work.

Examples

Culling example

Can be used to activate a nameplate visual when the user is close, so the activation based on distance stays local.

It is also a quick and easy way to make a culling system for world items, deactivating flux or heavy rendering when a user is a distance away.

The example on the left uses UserDistanceValueDrive combined with BooleanValueDriver to control the shadows of a Light to increase performance of a world.
