Component:VirtualParent

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

Component image

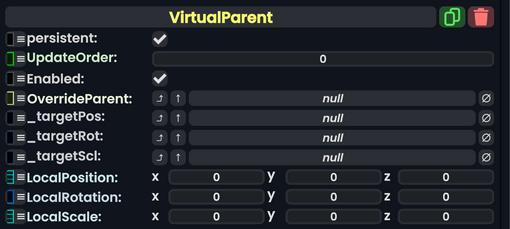

VirtualParent component as seen in the Scene Inspector

Description

The Virtual Parent Component is used to make a Slot act as the child of another Slot without needing to be in the normal hierarchy order. This can be useful when you need it to respond in a certain way using transforms of the overriding parent.

The Virtual Parent Component will not automatically update the slot unless the overriding parent slot has moved, rotated, or scaled (or in some way updated its current transform)

The different ways to force this Slot (that has the Virtual Parent Component on it) to update its own transform, is to move it by grabbing it, using other components to move it, or using Flux.

You can use the provided local offset fields to then further position this slot from its virtual parent.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled.
OverrideParent	Slot	If not null, the slot that the object gets reparented to
_targetPos	field drive of Float3	Position to be driven by parent's position.
_targetRot	field drive of FloatQ	Rotation to be driven by parent's rotation.
_targetScl	field drive of Float3	Scale to be driven by parent's scale.
LocalPosition	Float3	Object's position relative to parent.
LocalRotation	FloatQ	Object's rotation relative to parent.
LocalScale	Float3	Object's scale relative to parent.
