Component:Grabbable

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

Component image

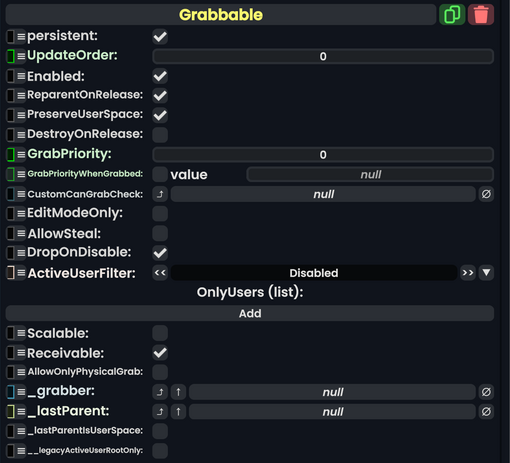

**Grabbable** component as seen in the Scene Inspector

Introduction

Grabbable is a complicated thing
— AlexFromAlaska

The Grabbable component allows you to grab any slot it is attached to, provided it has some type of Collider.

Usage

Fields
Name	Type	Description
`persistent`	Bool	Determines whether or not this item will be saved to the server.
`UpdateOrder`	Int	Controls the order in which this component is updated.
`Enabled`	Bool	Controls whether or not this component is enabled.
`ReparentOnRelease`	Bool	The slot is reparented to the value of `_lastParent`, instead of root when dropped *
`PreserveUserSpace`	Bool	The slot is reparented to Local User Space *
`DestroyOnRelease`	Bool	The slot this component is attached to is destroyed upon release
`GrabPriority`	Int	Determines what gets grabbed if several grabbable objects are touching someone's grab sphere. The IGrabbable with the highest priority will be grabbed first. If the highest priority ties with another IGrabbable, it will grab both of those and ignore any lower priority IGrabbables.
`GrabPriorityWhenGrabbed`	Nullable`1<Int>
`CustomCanGrabCheck`	GrabCheck	Not Usable inside Resonite Requires a mod for interacting with Sync Delegates
`EditModeOnly`	Bool	Determines if this grabbable is effective only in Edit Mode
`AllowSteal`	Bool	Other users can grab the slot this component is attached to.
`DropOnDisable`	Bool	The parent slot will be dropped when this component is disabled.
`ActiveUserFilter`	ActiveUserHandling
`OnlyUsers`	list of UserRef	A list of users that are allowed to grab this slot.
`Scalable`	Bool	Scalable determines if the grabbable's slot can be scaled.
`Receivable`	Bool	Receivable determines if a grabbable can be dropped onto a GrabbableReceiverSurface when let go of. The receivable has to be close enough for the receiver to receive it.
`AllowOnlyPhysicalGrab`	Bool	Only allow grab an object with a physical interaction - remote grabs are not allowed
`_grabber`	Grabber	Automatically Assigned
`_lastParent`	Slot	Automatically Assigned
`_lastParentIsUserSpace`	Bool	Automatically Assigned
`__legacyActiveUserRootOnly`	Bool	Automatically Assigned

Behavior

The interaction between ReparentOnRelease, PreserveUserSpace and any Grabbable Extensions, such as GrabbableReparentBlock, is somewhat complex.

When released, the following will be evaluated, in order:

If ReparentOnRelease is true, the slot will be parented to the value in _lastParent
If PreserveUserSpace and _lastParentIsUserSpace is true, the slot will be parented to Local User Space
If an Grabbable Extension exists above this component in the hierarchy, and it is within the MaxDepth specified in the block, the slot will be parented to Local User Space
Otherwise, the slot is parented to root.

You can drive the scale of a Grabbable object if the Scalable boolean is false.

Examples

This article or section is a Stub. You can help the Resonite Wiki by expanding it.
