Component:LegacyHorizontalChoiceBar

This article describes a feature marked as legacy—this usually means there's a newer, better alternative. Legacy features might not be removed but they will not be updated, and the team will not provide any support for them.

Component image

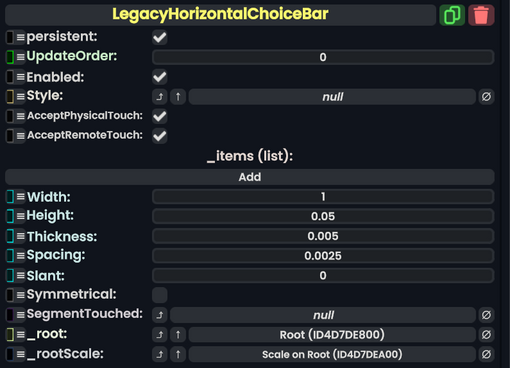

**Legacy Horizontal Choice Bar** component as seen in the Scene Inspector

The LegacyHorizontalChoiceBar component is used in old migrated legacy content. This should not be used in new content, and should be replaced whenever possible. This was primarily used in old Gizmos.

Fields

Fields
Name	Type	Description
`persistent`	Bool	Determines whether or not this item will be saved to the server.
`UpdateOrder`	Int	Controls the order in which this component is updated.
`Enabled`	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
`Style`	direct RelayRef`1<LegacyUIStyle>	The source of the legacy color styles for this component.
`AcceptPhysicalTouch`	Bool	Whether to allow Component:TipTouchSources to interact with/activate this component.
`AcceptRemoteTouch`	Bool	Whether this component allows interaction via the user's interaction laser.
`_items`	list of LegacyHorizontalChoiceBar.Item	A list of items to be able to press.
`Width`	Float	The width of each item.
`Height`	Float	The height of each item.
`Thickness`	Float	The thickness of each item.
`Spacing`	Float	How far apart the items should be placed.
`Slant`	Float	The Bevel of the meshes of each item.
`Symmetrical`	Bool	Whether the Horizontal layout should be symmetrical.
`SegmentTouched`	delegate of identity LegacyHorizontalChoiceBar.SegmentTouchEvent	The Sync delegate to call whenever an item is touched.
`_root`	Slot	the place to parent all the items.
`_rootScale`	field drive of Float3	The scale field of the slot to place the items.

Sync Delegates

Triggers
Method Name	Method type and Arguments.	Is the method hidden?	Description
`OnSegmentTouched:TouchEvent`	TouchEvent	✓	Called whenever a segment is touched.

Item

Fields
Name	Type	Description
`OverrideColor`	colorX	The color to use for this item rather than the one the root Component uses.
`Highlight`	Bool	Whether this item should be highlighted.
`Touched`	delegate of identity TouchEvent	The Sync delegate to call when this item is touched.
`_slot`	Slot	The root slot of this item option.
`_text`	direct RelayRef`1<TextRenderer>	The text of this item option.
`_position`	field drive of Float3	The position field of the slot of this item.
`_textPosition`	field drive of Float3	The position of the text of this item.
`_textBounds`	field drive of Float2	The text bounds field.
`_colliderSize`	field drive of Float3	The size of this item's collider.
`_colliderOffset`	field drive of Float3	The offset of this item's collider.
`_mesh`	reference drive of BevelStripeMesh	The mesh of this item.
`_material`	reference drive of PBS_RimMetallic	The material of the mesh of this item.

SegmentTouchEvent

SegmentTouchEvent() is a sync delegate that is the type Delegate<LegacyHorizontalChoiceBar sender, Int itemIndex, TouchEventInfo eventInfo> and can be used to handle the press events of a LegacyHorizontalChoiceBar.

Usage

Just dont.

Examples

This article or section is a Stub. You can help the Resonite Wiki by expanding it.
