Component image

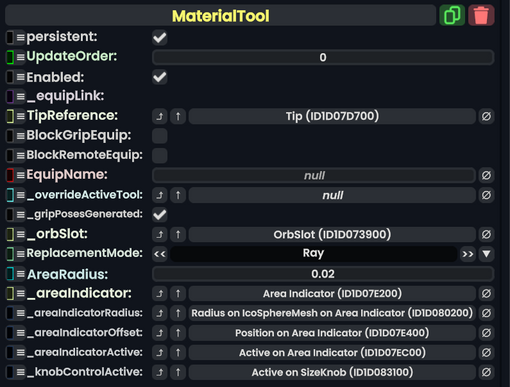

Material Tool component as seen in the Scene Inspector
See Material Tool.
Usage
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
_equipLink
|
direct LinkTarget`1<ITool> | This is Internal, and is used by the engine to retrieve the component this field is a part of. It cannot be assigned to. |
TipReference
|
Slot | The slot to use as the tool's tip, instead of the component's slot. |
BlockGripEquip
|
Bool | Whether to prevent legacy double grip equipping from equipping this tooltip. |
BlockRemoteEquip
|
Bool | Whether to prevent equipping by clicking via laser |
EquipName
|
String | The name of the tool in the context menu when equipping via context menu. |
_overrideActiveTool
|
InteractionHandler | The interaction handler to use instead of this tool as an interaction handler. |
_gripPosesGenerated
|
Bool | Whether the Grip Pose Reference components and slots have been generated for this tool. |
_orbSlot
|
Slot | The slot to store the material orb when an orb is placed into the tool or picked from an object. |
ReplacementMode
|
AssetToolReplacementMode | How to replace materials using the tool. |
AreaRadius
|
Float | The radius to use when ReplacementMode is set to Area.
|
_areaIndicator
|
Slot | The slot that is the root of the area indicator visual. |
_areaIndicatorRadius
|
field drive of Float | The area indicator's radius field. |
_areaIndicatorOffset
|
field drive of Float3 | The area indicator's offset field. |
_areaIndicatorActive
|
field drive of Bool | The area indicator's active field, used to disable the visual when ReplacementMode is not set to Area.
|
_knobControlActive
|
field drive of Bool | The active field of the knob control visual/control. |
Sync Delegates
| Method Name | Method type and Arguments. | Is the method hidden? | Description |
|---|---|---|---|
SnapFilter:Func`3<Snapper, SnapTarget, Bool>
|
Func`3<Snapper, SnapTarget, Bool> | ✓ | A function that can be used in a snapper to filter what objects can snap to a snapper (filters to material orbs only). |
EditMaterial:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the edit material button is touched. |
CreateCopy:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the create copy button is touched. |
CreateMaterial:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the create material button is touched. |
ConvertAllMaterials:ButtonEventHandler`1<Slot>
|
ButtonEventHandler`1<Slot> | ✓ | Called when the convert all button is touched. |
ConvertMaterial:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the convert button is touched. |
RunConversion:Action`2<DevCreateNewForm, Slot>
|
Action`2<DevCreateNewForm, Slot> | ✓ | Called when the convert process is started. |
CanKnobControlInteract:GrabCheck
|
GrabCheck | ✓ | Can be used to check if a grabber is allowed to interact with a grabber. Can be used to filter the same hand from grabbing an item on this material tip! (possibly only instance of this behavior being possible) |
Usage
See Material Tool.
Examples
See Material Tool.
