Component:ProtoFluxTool
From Resonite Wiki
More actions
Component image

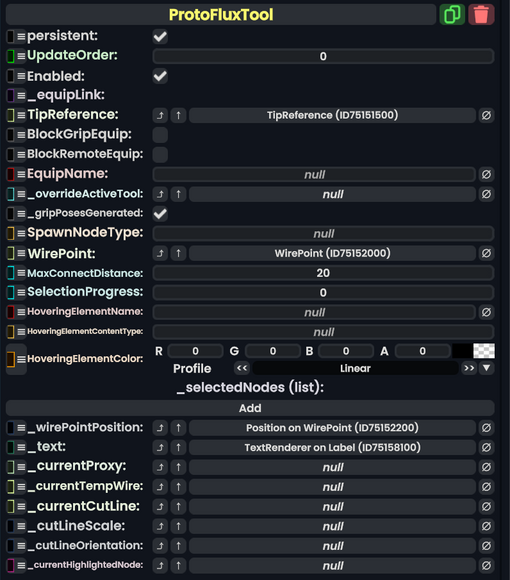

Proto Flux Tool component as seen in the Scene Inspector
For more info on the protoflux tool in general, see ProtoFlux and ProtoFlux Tool.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
_equipLink
|
direct LinkTarget`1<ITool> | This is Internal, and is used by the engine to retrieve the component this field is a part of. It cannot be assigned to. |
TipReference
|
Slot | The slot to use as the tool's tip, instead of the component's slot. |
BlockGripEquip
|
Bool | Whether to prevent legacy double grip equipping from equipping this tooltip. |
BlockRemoteEquip
|
Bool | Whether to prevent equipping by clicking via laser |
EquipName
|
String | The name of the tool in the context menu when equipping via context menu. |
_overrideActiveTool
|
InteractionHandler | The interaction handler to use instead of this tool as an interaction handler. |
_gripPosesGenerated
|
Bool | Whether the Grip Pose Reference components and slots have been generated for this tool. |
SpawnNodeType
|
direct SyncType | The type of the ProtoFlux node to spawn. |
WirePoint
|
Slot | The slot that the tool is currently pulling a wire out of. |
MaxConnectDistance
|
Float | The distance this protoflux tool will search for nodes from it's tip before stopping. it's usually 20 meters in local space. |
SelectionProgress
|
Float | How far the user is to selecting nodes by holding Secondary |
HoveringElementName
|
String | The name of the protoflux element this tool is currently hovering over |
HoveringElementContentType
|
direct SyncType | The type of the protoflux element this tool is currently hovering over |
HoveringElementColor
|
ColorX | The color of HoveringElementContentType
|
_selectedNodes
|
list of ProtoFluxNodeVisual | The list of nodes the protoflux nodes that the tool currently has selected. |
_wirePointPosition
|
field drive of Float3 | What field to drive on a StripeMesh for a currently pulled wire. |
_text
|
TextRenderer | The text to drive with information from this tool. |
_currentProxy
|
ProtoFluxElementProxy | What element the protoflux tool is currently pulling in order to connect to another element via the UI. |
_currentTempWire
|
Slot | The current wire that this tool is pulling from a protoflux connector. |
_currentCutLine
|
Slot | The current wire that this tool is trying to cut. |
_cutLineScale
|
field drive of Float3 | The current wire that this tool is trying to cut's scale. |
_cutLineOrientation
|
field drive of FloatQ | The orientation of the current wire that this tool is trying to cut. |
_currentHighlightedNode
|
ProtoFluxNodeVisual | The current node this tool is looking at. |
Sync Delegates
| Method Name | Method type and Arguments. | Is the method hidden? | Description |
|---|---|---|---|
ToggleOverviewMode:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the toggle overview mode button is touched. |
OnPackInPlace:ButtonEventHandler`1<ProtoFluxNode>
|
ButtonEventHandler`1<ProtoFluxNode> | ✓ | Called when the pack in place button is touched. |
OnUnpack:ButtonEventHandler`1<Slot>
|
ButtonEventHandler`1<Slot> | ✓ | Called when the unpack button is touched. |
OnClearSelection:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the clear selection button is touched. |
OpenNodeBrowser:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the open node browser button is touched. |
OnCreateDrive:ButtonEventHandler`1<IWorldElement>
|
ButtonEventHandler`1<IWorldElement> | ✓ | Called when the create drive button is touched. |
OnCreateWrite:ButtonEventHandler`1<IWorldElement>
|
ButtonEventHandler`1<IWorldElement> | ✓ | Called when the create write button is touched. |
OnCreateLocal:ButtonEventHandler`1<ProtoFluxReferenceProxy>
|
ButtonEventHandler`1<ProtoFluxReferenceProxy> | ✓ | Called when the create local button is touched. |
OnCreateStore:ButtonEventHandler`1<ProtoFluxReferenceProxy>
|
ButtonEventHandler`1<ProtoFluxReferenceProxy> | ✓ | Called when the create store button is touched. |
OnCreateDataModelStore:ButtonEventHandler`1<ProtoFluxReferenceProxy>
|
ButtonEventHandler`1<ProtoFluxReferenceProxy> | ✓ | Called when the create data model store button is touched. |
OnCreateSource:ButtonEventHandler`1<IWorldElement>
|
ButtonEventHandler`1<IWorldElement> | ✓ | Called when the create source button is touched. |
OnCreateReference:ButtonEventHandler`1<IWorldElement>
|
ButtonEventHandler`1<IWorldElement> | ✓ | Called when the create reference button is touched. |
OnCreateDelegateProxy:ButtonEventHandler`1<Delegate>
|
ButtonEventHandler`1<Delegate> | ✓ | Called when the create delegate proxy button is touched. |
